358 security mesh fencing

Name: 358 security mesh fencing
Brand: LNF-Clearvu Fence
Price: 18.66 USD

Buy cheap 358 security mesh fencing product

Brand Name : LNF-Clearvu Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.66$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

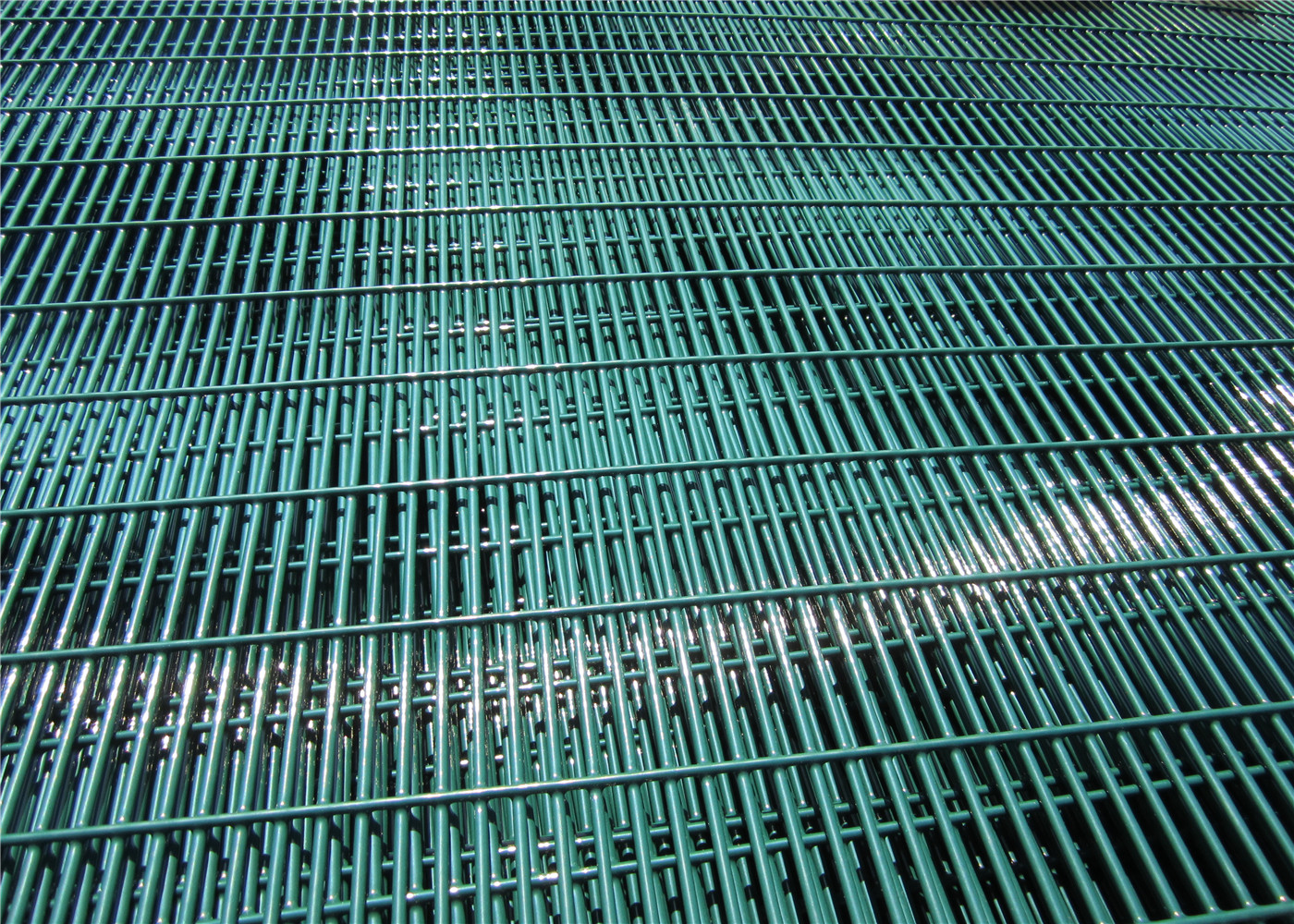

358 security mesh fencing ( 3"×0.5"×8 guage) also known as"prison mesh" or anti-climb fence, is a special fencing panel we can make in our city, this production offers the best value for performance, durability and appearance, "358" comes from its measurements 3" x 0.5" x 8 gauge which equates to approx.76.2mm x 12.7mm x 4mm in metric.

Technical Information

Weld strength of this kind of security mesh fencing is a minimum of 75% to steel strength guaranteed on every weld and a Tensile of the wire:600-750N/m2 with a welded strength:60%-80% Surface treatment:

Wire and Tubes Surface Treated Types

Security mesh fencing Zinc Class A (min. 275g/m²) or Class C (min. 110g/ m²) - coated - PVC Coating Optional. Heavy galvanized wire Class A (min. 275g/m²) or Lightly Galvanised wire Class B (min. 135g/m²) - coated - PVC Coating Optional.

Advantages :

Security 358 mesh fencing aperture is 72.2mm horizontal x 8.7mm vertical and makes 358 security fencing extremely difficult to penetrate using conventional hand tools, thus providing a high delay factor. Despite the high degree of security, the visual impact of a 358 fence on the environment remains very discreet. It is specifically configured to give maximum visibility (important for transparent camera surveillance and identifying intruders.)

Specification

358 security mesh fencing is a professional structure designed for high-security environments, combined with a steel framework, coated with heavy zinc or RAL color powder coating.

Panels		post
Fence	Panel Size	Post Size	Post Height	Total Number of Fixings
Height	Height/Width	Length/Width/Thickness		Inters- 1 clamp	Corners-2 clamp
m	mm	mm	mm
2.0	2007 x 2515	60x60x2.5mm	2700	7	14
2.4	2400 x 2515	60x60x2.5mm	3100	9	18
3.0	2400 x 2515	80x80x2.5mm	3800	11	22
3.3	2997 x 2515	80x80x2.5mm	4200	12	24
3.6	3302 x 2515	100x60x3mm	4500	13	26
3.6	3607 x 2515	100x100x3mm	4500	13	26
4.2	4204 x 2515	100x100x4mm	5200	15	30
4.5	4496 x 2515	100x100x5mm	5500	16	32
5.2	5207 x 2515	120x120x5mm	6200	18	36

Feature security mesh fencing

Anti-Cut and Anti Climb
