Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

Product Categories
Top Fencing Co.Limited
Contact Now

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

Brand Name : LNF-wiremeshfence.com/buy-358_fence.html

Model Number : 3.00mm wire 4.00mm wire 12.70mm*76.20mm

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to Malaysia, South Africa, USA



Product Description

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,



Name Anti-climb Fence /358 high security fence
Material Iron, Stainless Steel,Galvanized wire, Galfan Wire.

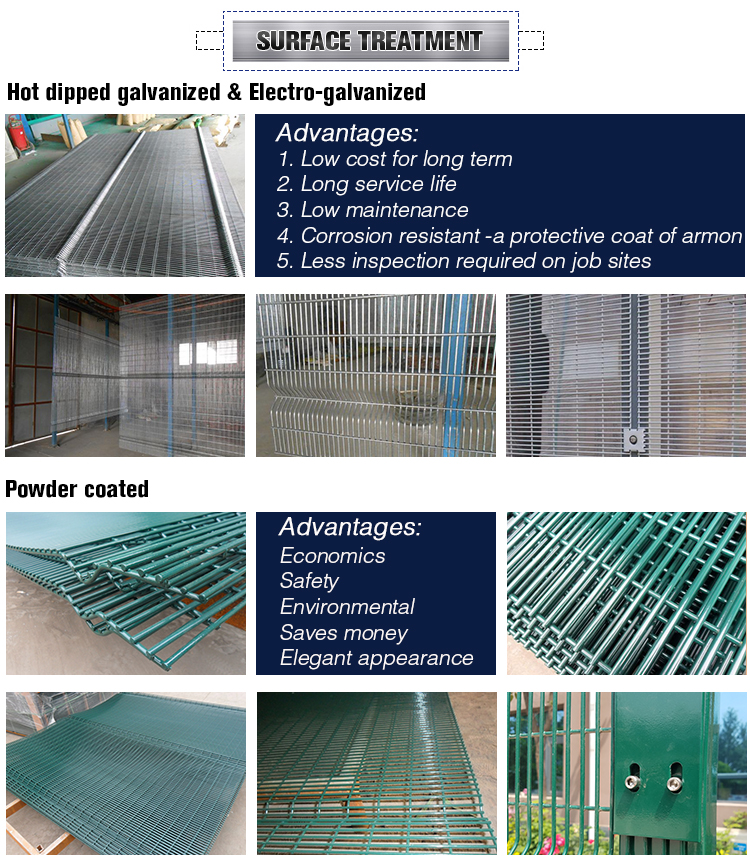

Surface Treatment Hot-dipped Galvanized Electro-galvanized with polyester powder coated (all colors in RAL)
Connecting Methods lron Bar. Hexagonal Clamp and Screws
Height 1000mm to 6000mm popular: 2500mm, 3000mm
Width 1000mm to 3000mm popular: 2200mm, 2500mm
Wire thickness 4mm to 6mm the most popular is 4mm (BWG Gauge 8#).
Hole size 76.2mm x 12.7mm (3 inch x 0.5 inch)
Post Square post popular: 60mm x 60mm, 80mm x 60mm
V-top including angle iron, barbed wire, razor barbed wire.
Fastener flat bar, screw, clamp

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

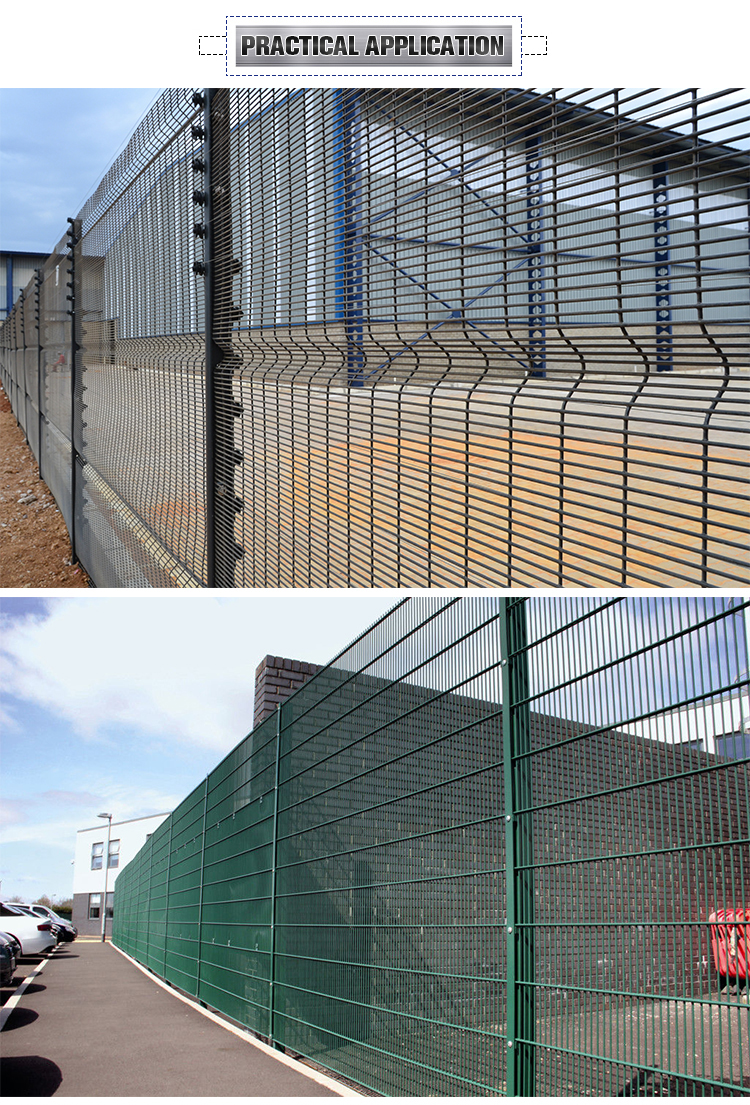

High Security Fence, also called 358 fence, which is well-known as anti-climb and anti-cut fence. Perfectly suited to high security applications, like military, airport, prison, warehouse, factory etc.
This high performance system provides the ultimate protection against anti-climb and cut through. With the additional V-top like barbed wire and razor barbed wire, the system will have multiple additional features to aid security.

Advantages

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,



Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

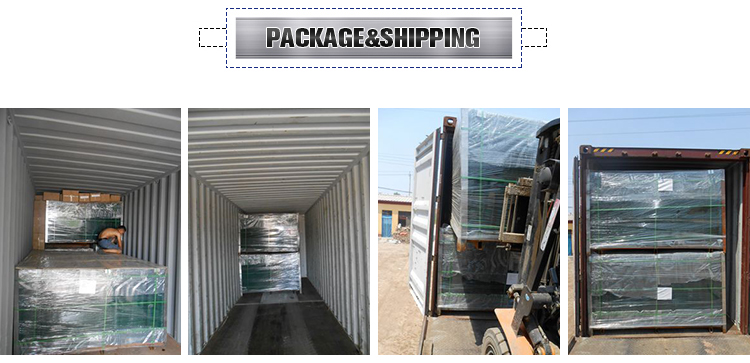

Packaging & Shipping

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

an anti-climb fence is also called high-density mesh fence or anti-terrorist mesh fence. It is designed for a high-security area with high strength steel post, high density welded mesh panel, prevent remove fittings and connection and integrated security annex configuration(sawtooth, extension arms, barbed wire and razor ribbon roll). Anti-cut and anti-clamp design make the fence can effectively resist the externals.

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

specifications:

MasterView 358

2.1m

2.4m

3.0m

Panel height

2134mm

2438mm

2997mm

Panel width

2515mm

2515mm

2515mm

Mesh size

12.7 x 76.2mm

12.7 x 76.2mm

12.7 x 76.2mm

Horizontal wire

4mm

4mm

4mm

Vertical wire

4mm

4mm

4mm

Panel weight

50kg

57kg

70kg

Posts

60 x 90 x 4 mm

60 x 90 x 4 mm

80 x 80 x 4 mm

Post length

2.8m

3.1m

4.0m

Clamp bar

40 x 6 m slotted

40 x 6 m slotted

40 x 6 m slotted

Fixings

8 security nuts

No. of fixings

8

9

11

Other specifications could be customed by the customers’ requirements.



Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,
