Temporary Construction Fence Panels for Canada standard 6'x9.5' 8'x9.5' mesh spacing4"x12' x 9 gauge wire
High-quality temporary construction fencing panel LNF made are use Q235 Square Steel Pipe,Low Carbon Steel Wire corrosion resistant solutions prepare galvanized or full hot dipped galvanized after fabricate then coated first-class brand intern powder the minimum thickness of powder layer 80 microns thick if you are run a construction fence rental deal in you local there are lots questions need to be fixed before you order such as marketing to investigate what it is most standard and widely acceptance temporary fence panels in local and what is colour is better than another type of colour,and how much transport cost from port to your yard etc .By LNF more than 10 years market experience 6ft x 9.5ft ,6ft x 10ft ,8ft x 9.5ft outer frame 25mm cross brace 25mm/ 1" pipes and a 3.2mm ,3.5mm,3.9mm diameter was usual appear in Canada market .

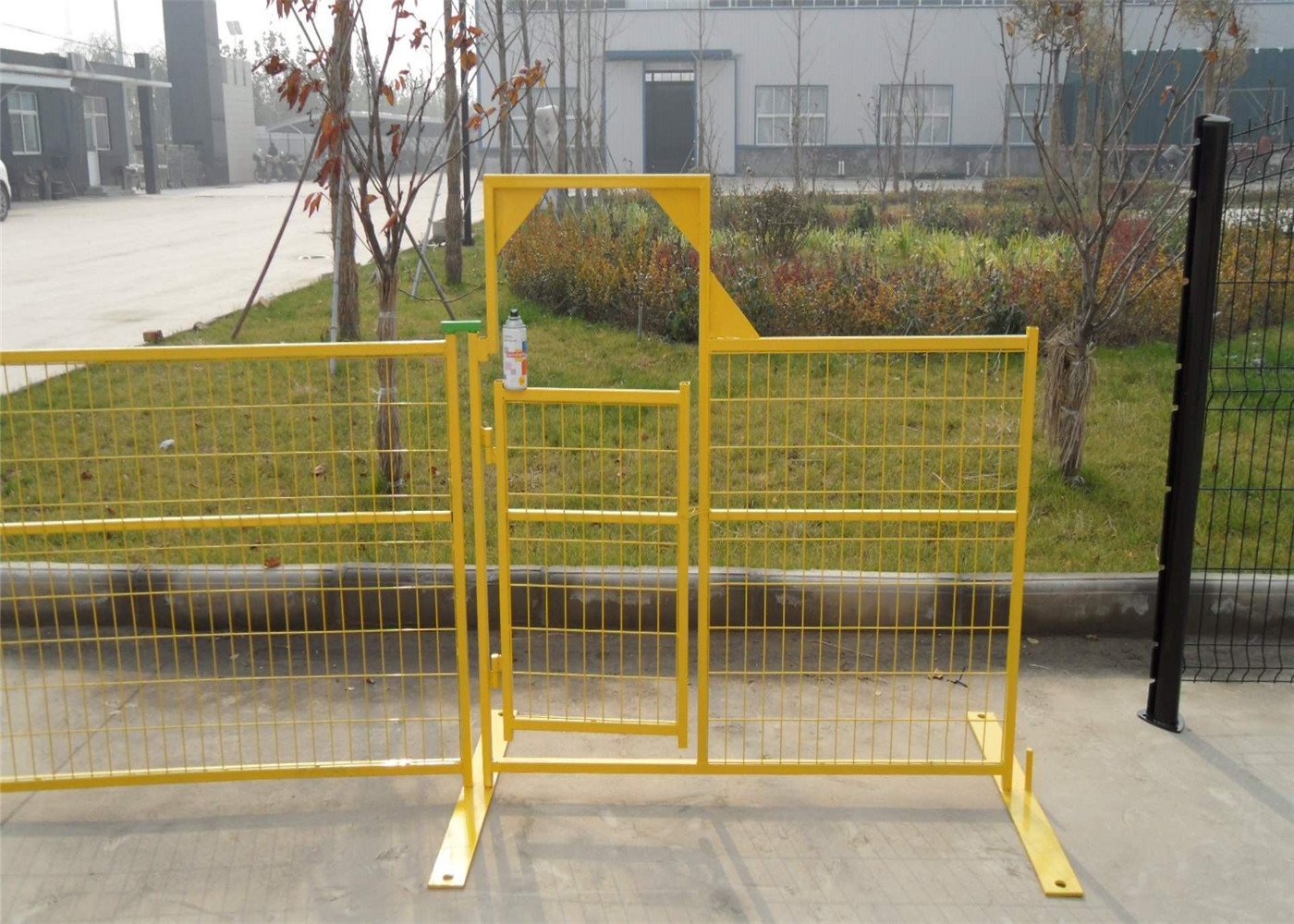

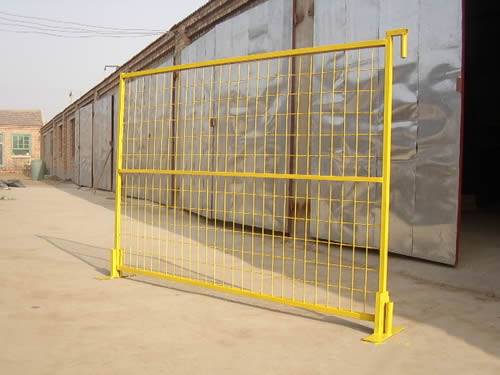

Standard Temporary Fence is made of galvanized steel wire and square pipe. They are welded together and then powder coated or painted to form a durable structure. The fence panel is connected by the top coupler, metal feet and other accessories to become a whole portable fence system.
The Canadian Standard Temporary Fence is specially designed for strength and durability while also maintaining an original appearance though it is used for many times.
Materials: High quality mild steel wire.
Corrosion Form: electric galvanized before powder coated, hot-dipped galvanized.

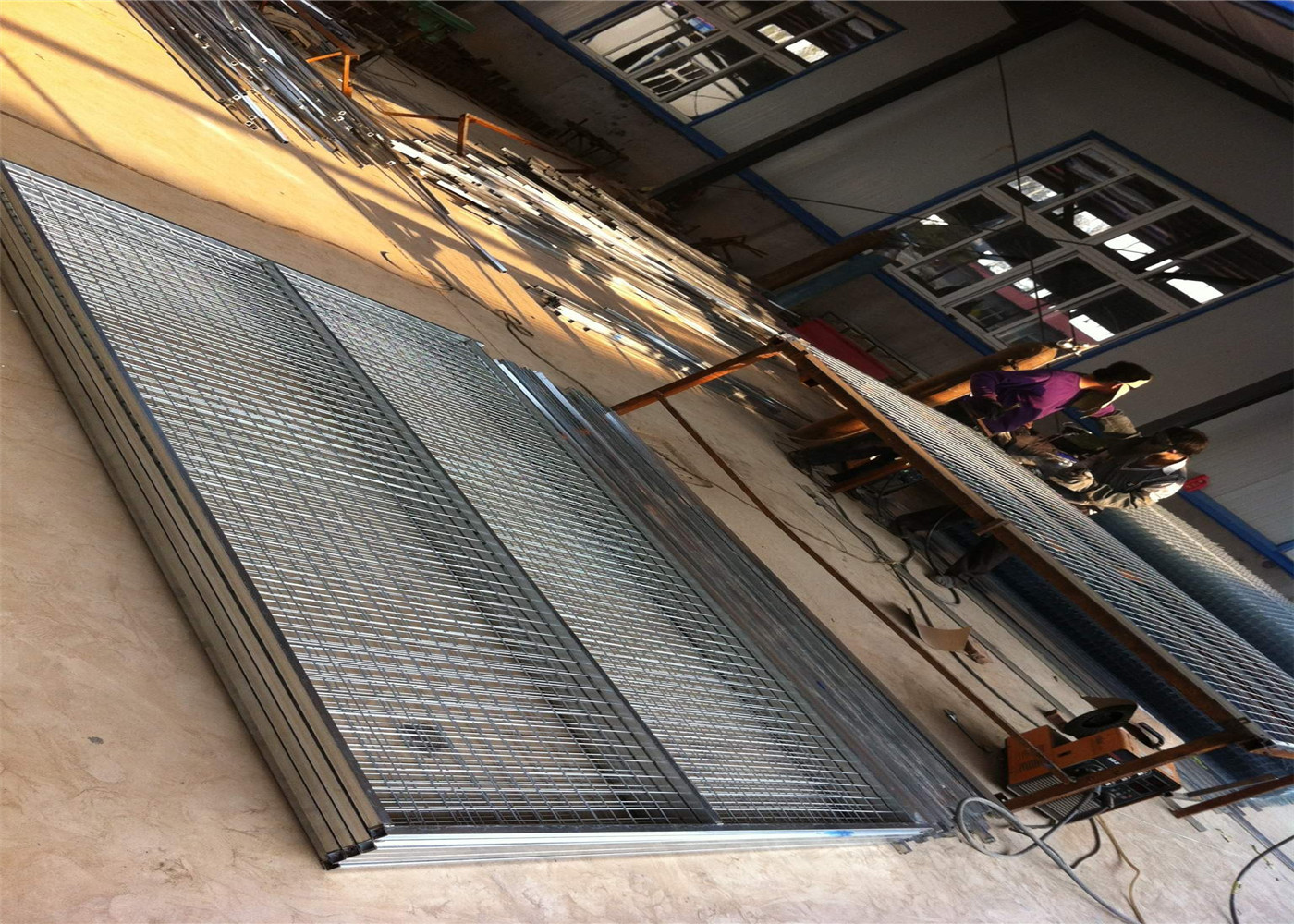

Process Of Temporary Fence: material----straighten & cut short----welded---electric galvanized/hot-dipped galvanized----parkerising---PVC coated /sprayed----packing----shipment.
| Canada Standard Construction Fence Panels |
| Diameter -option2 | 11.5ga/ 2.50mm 11ga/3.00mm 9.5ga/3.50mm 10ga /3.3mm |
| Diameter -option2 | 9ga/3.60mm 8.5ga/3.80mm 8ga/4.00mm |
| Mesh spacing | 2"x4"/50mmx100mm ,4"x12"/100mmx300mm 3"x6" 75mm x 100mm |
| Height | 4’/1220mm 6’/1830mm 8’/2430mm |
| Width | 8’/2430mm 8.5”/2600mm 9’/2740mm 9.5’/2900mm 10’/3048mm |
| Outer Frame | 3/4"/ 20mm 1"/25mm 1.2"/30mm 1.6"/40mm 2"/50mm RHS thickness 1.2mm -2.00mm |
| Middle frame | 3/4"/ 20mm 1"/25mm 1.2"/30mm 1.6"/40mm 2"/50mm RHS thickness 1.2mm -2.00mm |
| Accessories | 1 pieces top coupler plus steel plate base |
| Steel Base Option 1 | Length 863mm* Width89mm*8.00mm 26"x3.5"X0.3" |
| Steel Base Option 2 | Length 760mm*Width100mm*7.00mm 30"x4"x0.276" |
| Steel Base Option 3 | Length 600mm*Width100mm*7.00mm 23.6"x4"x0.276" |
| Finish 1 | Fully hot dipped galvanized |
| Finish 2 | Fully hot dipped galvanized then INTERPON powder coated |
| Finish 3 | Prepare galvanized |
| Finish 4 | Prepare galvanized then INTERPON powder coated |
Surface treatment:Hot Dipped Galvanized,Powder Coated,Electro Galvanized then PowderCoated/Painted (Coating thickness :0.2MM),PVC Coated (Coating thickness:0.5-1.0MM)
Colour:
RAL9010(white), RAL1021(yellow), RAL5005(dark blue)
RAL5012(light blue), RAL6005(dark green), RAL9005(black)
RAL7004(light gray), RAL7005(dark gray)
Advantages:
Canada temporary fencing can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations. It's safe and firm, disassemble, flexible and reuses.
Application:
Construction Sites, Commercial Uses, School Board Portable site safety, Crowd control/ Vendor Security, Residential Construction Sites, Restoration and Fire Damaged Sites, Special Events (Concerts, Festivals, Cultural, Parades and Sporting Events)
Temporary fence feet & Temporary Fence Coupler:
the common size is 800mm x 80mmx7mm or 760x120x7mm thick and Finished by Galvanized with Powder coating or Painting.
