Anti Cut 358 Mesh Fence

Name: Anti Cut 358 Mesh Fence
Brand: TopClearvuFence
Price: 1 USD

Buy cheap Anti Cut 358 Mesh Fence product

Brand Name : TopClearvuFence

Model Number : 358 high security fence

Certification : ISO

Place of Origin : China

MOQ : 100 pcs

Price : 1USD -200USD

Payment Terms : L/C, L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per week

Delivery Time : 15 days

Packaging Details : Metal Frame Pallet

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

358 fence is hugely flexible for a range of high security locations, from schools, industrial and commercial units, police stations and secure units, Ministry of Defence sites, airports and seaports.

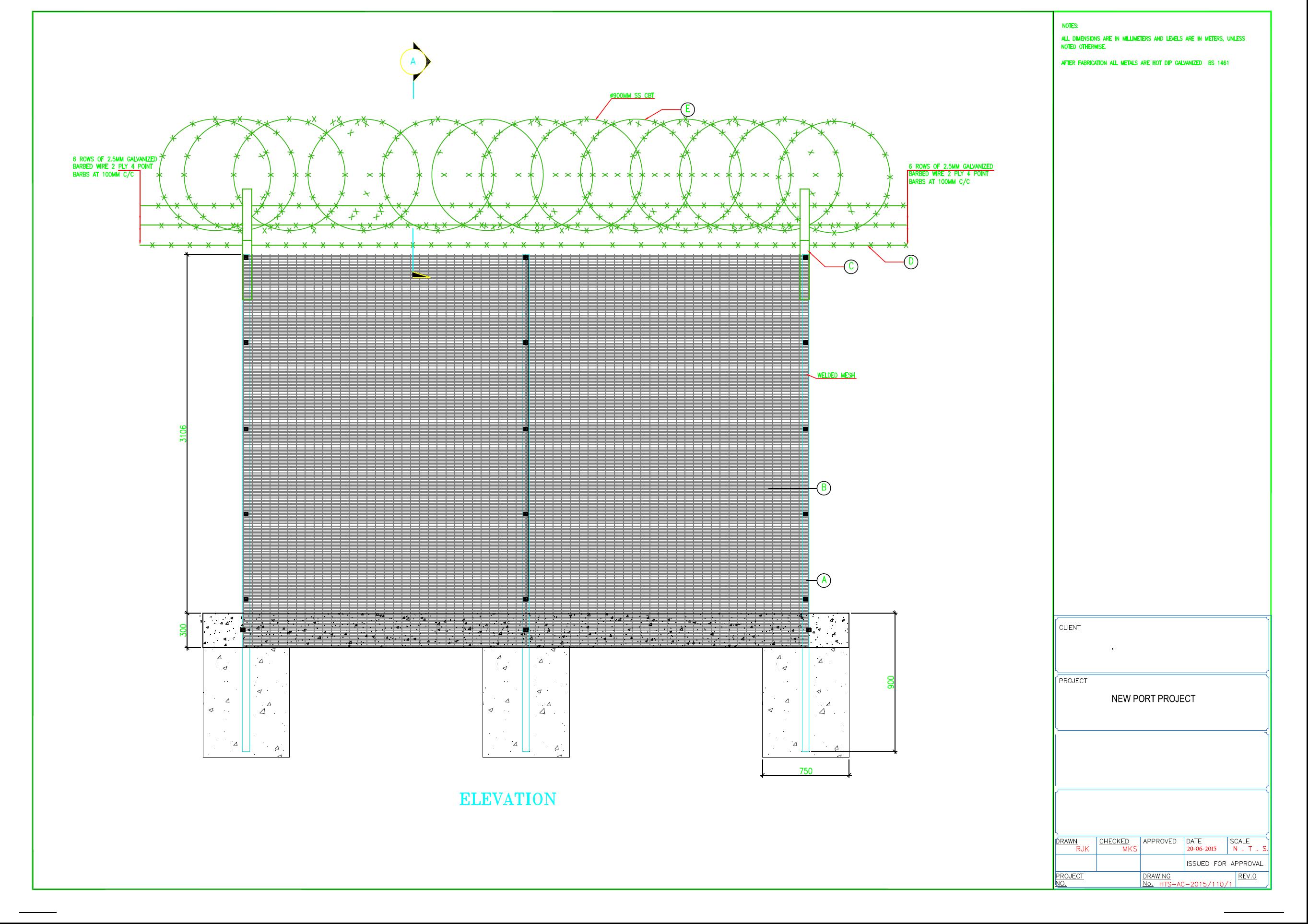

358 dubai fence+Y post+razor wire

prison used 358 dubai fence anti climb mesh fence clear vu mesh is a key part of the overall security plan and counter terrorism initiative at airports around the world.  A.S.Ohave been a key partner in the design, manufacturer and supply of airport fencing to a number of world class airports over the last 40 years continuing to innovate the field of airport fencing systems and gate solutions.

There are many style we can choose: 358 panel+vertical post
clear vu panel+vertical post
358 panel+Y post
clearvu panel+Y post
Razor wire+358 panel+vertical post
barb wire+358 panel+vertical post
spike+358 panel+vertical post
Razor wire+358 panel+T post 3D panel+angle arm style
3D panel+V arm style
chain link fence+angle arm style
chain link fence+V arm style

product name	airport fence
material	hot dipped galvanzied wire and pipe
surface	PVC caoted or powder painted
packing	panel and post packed by metal pallet,accessories packed by carton box,razor wire packed by waterproof
Application	from schools, industrial and commercial units, police stations and secure units, Ministry of Defence sites, airports and seaports
Customization is avaliable

Detailed Images

358 panel

Wire diameter:3-6mm avaliableOpening:12.7*76.2mm,12.5*75mm
Height:1-3m
Lenght:2-3m
Customization is avaliable

clearvu panel

Wire diameter:3-6mm avaliableOpening:12.7*76.2mm,12.5*75mm
Height:1-3m
Lenght:2-3m
Customization is avaliable

connect by metal clips

Wire diameter:3-6mm avaliableOpening:12.7*76.2mm,12.5*75mm
Height:1-3m
Lenght:2-3m
Customization is avaliable

metal clips+V bend panel

metal clips

post+V bend panel

Wire diameter:3-6mm avaliableOpening:12.7*76.2mm,12.5*75mm
Height:1-3m
Lenght:2-3m
Customization is avaliable

single gate

two leaf single gate

double gate

Y post the top is 50*50mm or 60*60mm

unilateral inclined post

The top is barb wire: 12#,14# as standard

the top is barb wire and razor wire

mesh with razor wire BTO 22 as standard

Prokect case

Packing & Delivery

358 mesh fencing also called anti climb fencing , prison mesh fencing . 358 mesh is applicated widely in prison,ministry of defence, Industrial sites, ball court and etc. ’358′ comes from the measurements, 3″ × 0.5″ × 8 gauge, samll apertures 76.2mm × 12.7mm is not possible for any intruder to get a foot hold for climbing, or indeed for getting any cutting tool into. High standard finish (42 micron hot dipped galvanized or powder coated to BS EN 13438) can ensure that 358 mesh is durably used in various of environment.

Wire diameter: Horizontal wire: 4.0mm; Vertical wire: 4.0mm.

Mesh apertures: 76.2mm × 12.7mm.

Panel height: from 1.27meter to 5.2meter.

Panel width: 25 × 15mm.

Post size: 60 × 60 × 2.5mm, 80 × 80 × 2.5mm, 100 × 100 × 3/4mm, 120 × 120 × 5mm.

Post height: from 1500mm to 6200mm.

Finish:

Hot dipped galvanized 300g/sm or 42micron.
Powder coated to BS EN 13438.

Specification:


358 Mesh Panels		Posts
Fence	Panel Size	Section	O/A Length	Total number of fixings
height m	Height/Width mm	Section	O/A Length	Inters- 1 Clamp bar	Corners- 2 Clamp bars
1.27	1270 × 2515	60x60x2.5mm	1500	4	8
1.80	1800 × 2515	60x60x2.5mm	2300	6	12
2.0	2007 × 2515	60x60x2.5mm	2700	7	14
2.4	2400 × 2515	60x60x2.5mm	3100	9	18
3.0	2997 × 2515	80x80x2.5mm	3800	11	22
3.3	3302 × 2515	80x80x2.5mm	4200	12	24
3.6	3607 × 2515	100x100x3mm	4500	15	26
4.2	4204 × 2515	100x100x4mm	5200	15	30
4.5	4496 × 2515	100x100x5mm	5500	16	32
5.2	5207 × 2515	120x120x5mm	6200	18	36

Installation:

Clamp and M8 bolt.

Use clamp and M8 square bolts with nuts through posts.

Top barbed wire: Muyuan 358 mesh can supply top razor wire or barbed wire for further security.

Gate: Muyuan can design and make gates that suit to 358 fence with anti-climb protection.
